Battery Isolator Switch Manual Removable Handle

(No reviews yet) Write a Review
SKU:
A-0341002003
Availability:
1 - 4 Business Days
  • Battery Isolator Switch

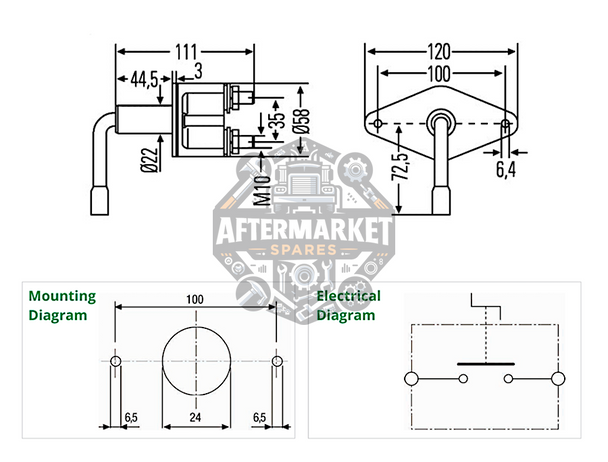

  • Battery Isolator Switch specs
  • Battery Isolator Switch rubber boots
$138.05

Description

Single Pole Manual Battery Disconnect Switch features a removable handle with chain. Includes weather protective boot and seal. Direct replacement for battery switch BOSCH A-1342026002.

Features/Benefits/Specifications
Equipped with coloured rubber caps to differentiate between function or application
Waterproof and dustproof to IP65
Removable handle keeps actuator nearby with attached chain to prevent loss
Fixed handle model includes integrated Lock-Out Tag-Out
Max Operating Voltage: 24V DC
Max Continuous Current: 250A
Intermittent Current: 2500A at 3 sec
Operating Temp: -40°C to +85°C
Ingress Protection: IP65
Contacts: Silver Plated Copper
Terminals: M10

Compatible with bracket A-11003 series. Refer below in related items.
Direct replacement: HELLA 6EK001559-001, HELLA 6EK001559-007, New Holland 1939387, IVECO 8122114, BOSCH 0341002003, VOLVO 240315, DAF 122443, NARVA 61050.

Custom requests or Questions, simply click here for a quick response. NOTE: All Shipping via EXPRESS Post
